Product information:

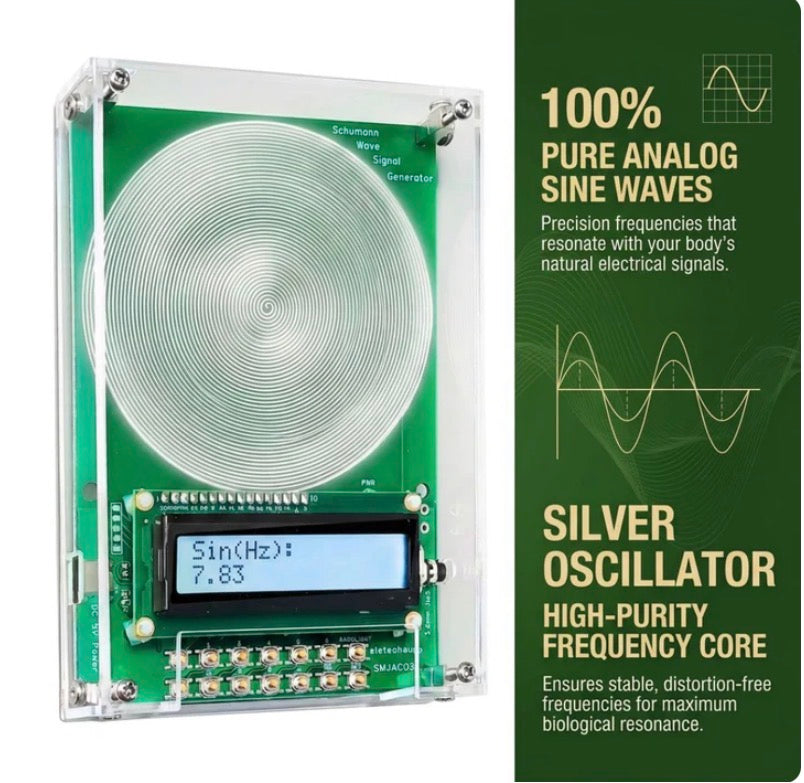

Specifications and parameters (standard):
Circuit board size: 15 * 15cm
Antenna waveform: sine wave
Interface waveform: sine wave square wave inverted square wave (the lower left corner is the output interface, and the waveform is output at the same time)
Power supply interface: DC5.5 * 2.1
Power supply voltage: 5V
Rated Power consumption:<1W
Default Frequency: 7.83Hz
Adjustment range: 0.1Hz to 30000Hz
Sinusoidal signal voltage amplitude: 3v
Square wave signal voltage amplitude: 5V
Specifications and parameters (special offer):
Circuit board size: 10 * 10cm
Waveform: square wave
Power supply interface: DC5.5 * 2.1
Power supply voltage: 5V
Rated Power consumption:<1W
Default Frequency: 7.83Hz
Adjustment range: not adjustable
Green Set: Adjustable Shumanbo+Headphones+Storage Bag
Packing list:
1* signal generatorÂ
